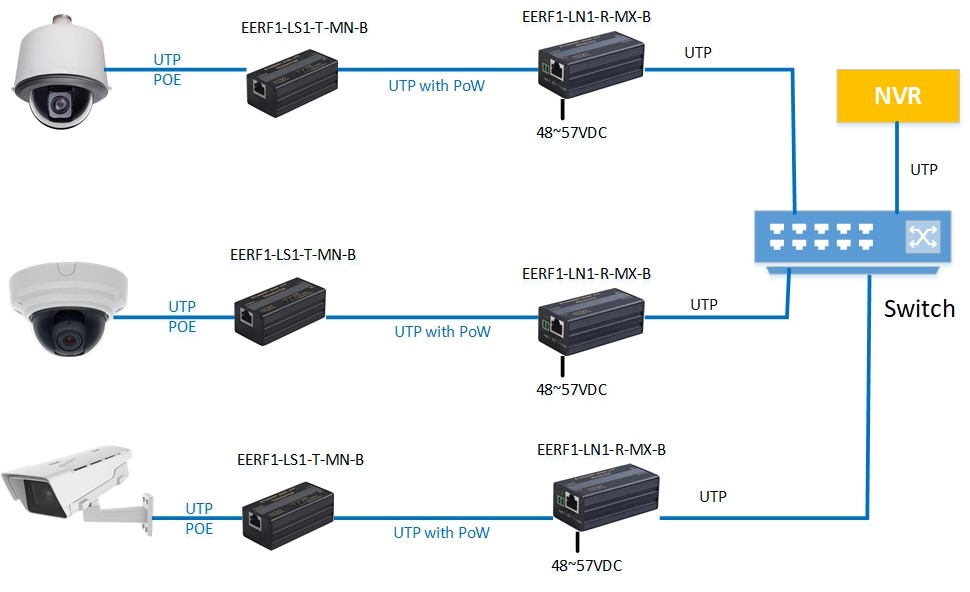

The KBC EERF1-LN1-R-MN-B series is an Ethernet over UTP (EoU) receiver with 1 UTP port supplying Power over Wire (PoW) and 1*10/100M Ethernet port. This receiver provides connectivity to one PoW/PoE (EERF1-LS1-T-MN-B) transmitter. Power is supplied to the transmitter through the UTP cable. Varying data rates are supported depending on cable distance and quality. Plug-and-play design ensures ease of installation with no electrical adjustment needed. LED indicators are provided to show the operational status of the unit clearly.
- 1 UTP port with or without PoW
- 1 *10/100M Ethernet port
- Connect one transmitter, EERF1-LS1-T-MN-B or EERN1-LN1-T-MN-B.
- UTP data rate >40Mbps (300m)
- Based on cable quality, cable pairs used (1,2 or4 pairs) and voltage applied to cable (48~57VDC) from headend, PoE and PoE+ are supported by PoW up to 400m.
- Over current and short circuit protection
- Unique PoW transmission protection design so that no power is output when the transmitter end is not connected.
