WES5 Series
This dual-radio access point incorporates the latest Wi-Fi 6 (802.11ax) wireless Ethernet technology. As the fifth addition to KBC's wireless systems, it builds on the user-friendly design of its predecessors in the widely recognized WES3 and WES4 series. WES5 utilizes 2.4 & 5 GHz license-free frequencies.

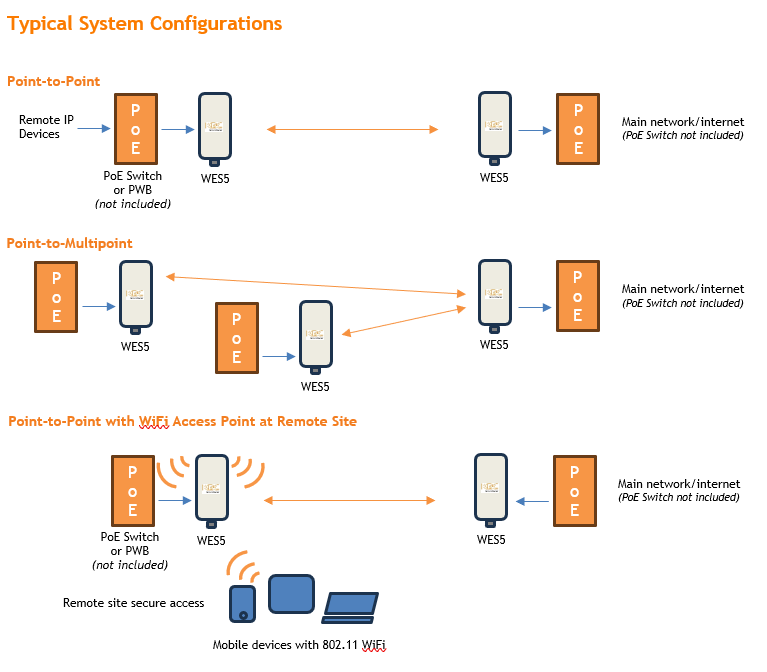

The WES5 offers unparalleled throughput, delivering up to 2.4 Gbps (radio rate) when connected to another WES5 unit in an optimal wireless environment. Its rugged, outdoor-ready design makes it the perfect solution for transmitting data to remote IP devices or extending long-range internet and network connections. Common configurations for the WES5 include point-to-point and point-to-multipoint setups, as well as secure local user-managed Wi-Fi access, providing easy connectivity at remote sites without direct access to the switch powering the WES5 unit.
The WES5 units are wall or pole-mountable with the included hardware.
WES5 Features
- Multiple mode configurations (Host/Client/Ad-Hoc)
- Gigabit PoE - IEEE 3at/bt or Passive 48Vdc
- 11a/n/ac/ax compliant
- Transmission Power Control, up to 27dBm
- Integrated directional antenna (option for external connection available)
- Static or DFS in 5.180~5.825 GHz bands
- 20; 20/40; 80; 160 MHz spectrum width options
- Up to 2402 Mbps of Throughput
- Secure transmission: WPA3 AES encryption
- Distance adjustment for long range transmission
- IP66 protection class
- Embedded web browser graphical user interface (GUI) for at-a-glance diagnostics and ease-of-use configuration
- Static & dynamic IPv4 LAN addressing, DHCP router mode
Suitable for...
- Point-to-Point & Point-to-Multi Point Systems
- High throughput back hauls
- Megapixel IP camera networks & remote gate access
- Multi-family housing complexes; parking lots; perimeter detection equipment; video surveillance in elevators
- Warehouses, industrial plants, water treatment facilities
- Off-grid power poles with solar-powered electronics
- Intercoms with integrated video
- Building-to-building network extension
- Exterior access points
