Deploy surveillance. Anywhere.
From temporary events and construction sites to transportation, public safety and remote critical infrastructure, KBC MSS provides a flexible platform for cameras, sensors, networking and remote connectivity.
Rapidly deploy surveillance, communications and autonomous power wherever fixed infrastructure is unavailable, impractical or simply too slow.
15 ft
Gas-shock assisted mast elevation
300 / 600W
Solar configurations
300 / 400Ah
Battery storage capacity
4G / 5G
Cellular or wireless transmission
Surveillance without the infrastructure
MSS is a compact, maneuverable surveillance platform designed to create a monitoring point without first building a permanent site.
Configure the platform around the application: mount cameras or sensors, install the required electronics, provide PoE locally and transmit video using cellular or traditional wireless connectivity.
Deploy a single unit for a focused requirement or multiple MSS units to extend coverage across a larger outdoor area.
A complete field platform
Engineered for deployment
The MSS is more than a mast. Its mechanical, power and electronics architecture is designed around repeatable field deployment.
Rapid deployment
Wheeled or fixed folding base with outriggers and a swing-arm mast.
15 ft mast
Gas-shock assisted mast lift helps position cameras and sensors above the immediate site.
Quick-connect pods
Removable interchangeable pods allow the platform to be adapted for different equipment.
Configurable electronics
A removable electronics tray provides a practical location for field networking and supporting hardware.
Autonomous power
300W and 600W solar configurations use adjustable panels, solar charge controller and wiring harness.
Battery capacity
Space for up to 300/400Ah battery storage in supported configurations, using AGM or LiFePO4 batteries.
One platform. Multiple configurations.
Select the mechanical and power configuration that suits the site, then build the surveillance and transmission package around it.
MSS-KT-300-15
300W solar configuration for autonomous field deployments.
MSS-KT-600-15
600W solar configuration for applications with greater system power requirements.
MSS-KT-NS-15
Mobile MSS configuration for deployments where solar generation is not required.
MSS-KT-FB-15
Fixed-base MSS configuration for applications requiring a different deployment footprint.
Build the surveillance system you need
MSS provides the field platform. The surveillance, networking, transmission and power package can then be selected around the actual application.
Cameras
Fixed, PTZ, thermal or application-specific imaging can be mounted to suit the monitoring requirement.
Sensors
Use the MSS as a field platform for suitable detection, environmental or specialist sensors.
Networking
Industrial low-voltage KBC switching can provide local Ethernet connectivity and 802.3af/at PoE+.
Cellular
LTE/4G/5G broadband provides connectivity where a wired network is not available.
Wireless
Traditional wireless Ethernet can link the MSS to nearby infrastructure or a wider site network.
Power
Solar generation, battery storage and supplemental charging options support remote operation.
Designed to go where fixed surveillance cannot
A deployable platform for temporary, remote or changing surveillance requirements.
Public Safety
Law enforcement, public-space monitoring and temporary high-risk locations.
Events & Venues
Public events, universities, entertainment venues and stadium environments.
Transportation
Traffic monitoring, transportation infrastructure and temporary road applications.
Emergency Response
Natural disasters, evacuation routes and emergency-management deployments.
Critical Infrastructure
Oil & gas, mining, utilities, ports and harbors.
Sites & Property
Construction, parking, property management, farming and agriculture.
Accessories & connectivity
Extend your MSS installation with KBC wireless networking, secure remote access and industrial Ethernet switching.
WES5
Extend the network from an MSS to remote cameras or infrastructure using point-to-point or point-to-multipoint wireless links.
ThruLink
Encrypted remote connectivity for accessing surveillance networks across public or private IP infrastructure.

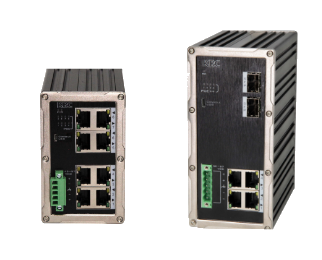

Low Voltage Switches
Low-voltage industrial Ethernet switching, including PoE options for integrating IP cameras and network devices into an MSS.
Why KBC MSS?
Need surveillance somewhere conventional CCTV cannot reach?
Tell KBC what needs to be monitored, how many devices are required, the available power and how the site can communicate. We can help define the MSS configuration around the application.
