eCopper™ HPoE Transmitter & Receiver
The KBC eCopper™ HPoE offers a cost-effective way to connect the latest IP cameras using existing coax wiring to a remote monitoring station. In addition to saving costs and time from cabling infrastructure upgrades to CAT5/5e/6, eCopper™ HPoE powers both its transmitter and remote cameras, eliminating the need for any additional power source at the camera site. eCopper™ HPoE also extends the IP camera cable run distance from 100 to 1000 meters, making it ideal for upgrading analog to IP cameras and other systems in large corporate buildings, retail, casinos, banks, prisons, stadiums and other applications.

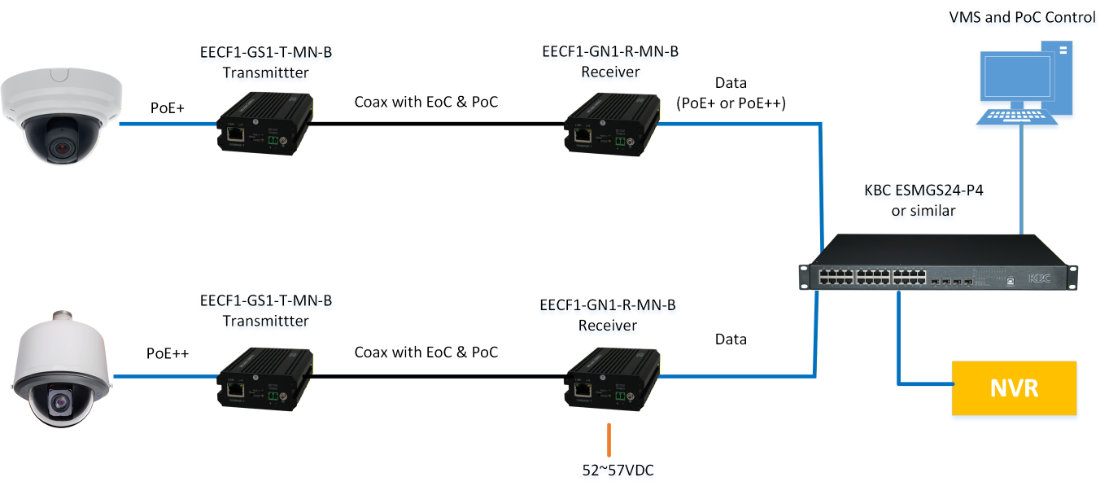

The KBC EECF1-GS1-T-MN-B is a fully ruggedized Ethernet over coax (EOC) transmitter that delivers connectivity for one 10/100/1000BASE-T RJ45 port over a 75-ohm coaxial cable. It provides PoE/PoE+/PoE++ support up to 90W to power connected edge devices. The transmitter is powered from the headend receiver model EECF1-GN1-R-MN-B by Power over Coax (POC) technology. The receiver can be powered by a PoE+ or PoE++ source or via an external PSU. eCopper™ HPoE features a plug-and-play design, with built-in LED indicators providing instant operational status. Transmission data rates vary based on cable distance and quality.
Product Features
- Ethernet over coax communication following IEEE1901 standard
- 3af/802.3at/802.3bt compliant
- Supports PoE++ (up to 90W) and Power over Coax
- Coax data rate >50Mbps (800m) based on coax quality
- Powered by PoC from Headend:EECF1-GN1-R-MN-B
- Complete protection design including surge and lightning protection
- 12vdc 2 pin terminal output providing power to external devices
- Unique PoC transmission protection design, including surge and lightning protection
- The EECF1-GS1-T-MN-B transmitter only works with the EECF1-GN1-R-MN-B receiver to form a link. Not compatible with other eCopper products.
