MCGN2-P1N

The KBC MCGN2-P1N series is an industrial two channel Gigabit Ethernet media converter. It supports the transmission of two channel Gigabit Ethernet over SFP port. By selecting different KBC SFP modules, the media converter can be transmitted via one or two, multimode or single mode optical fibers with full duplex operation. There is no A end or B end for MCGN2-P1N series, both ends of MCGN2-P1N are same, but when inserting 1 fiber version SFP module, two ends should be matched, that means one end is 1310nm/1550nm SFP, the other end is 1550nm/1310nm SFP. Typically the two channels media converter is installed in remote end, in the head end compatible MCGN1 series is installed. Plug-and-play design makes installation straightforward, with no electrical or optical adjustment needed. LED indicators are provided to show the operational status of the unit. Rugged design in both enclosure and electrical protection makes it suit for application in harsh environment.

The series is available in wall mount, DIN, and 2U passive rack FR2-12, or card version in 2U chassis FR2-16

  • 10/100M auto sensing
  • 2*100Base-TX Port
  • 1*100Base-FX Port
  • Compatible with 1 channel Gigabit media converter MCGN1(both 1*9 optics and SFP optics series)
  • IP40 enclosure
  • DIN, Wall Mount
  • FR2-12 passive Rack with 12 slots or Chassis card in FR2-16 with 16 slots

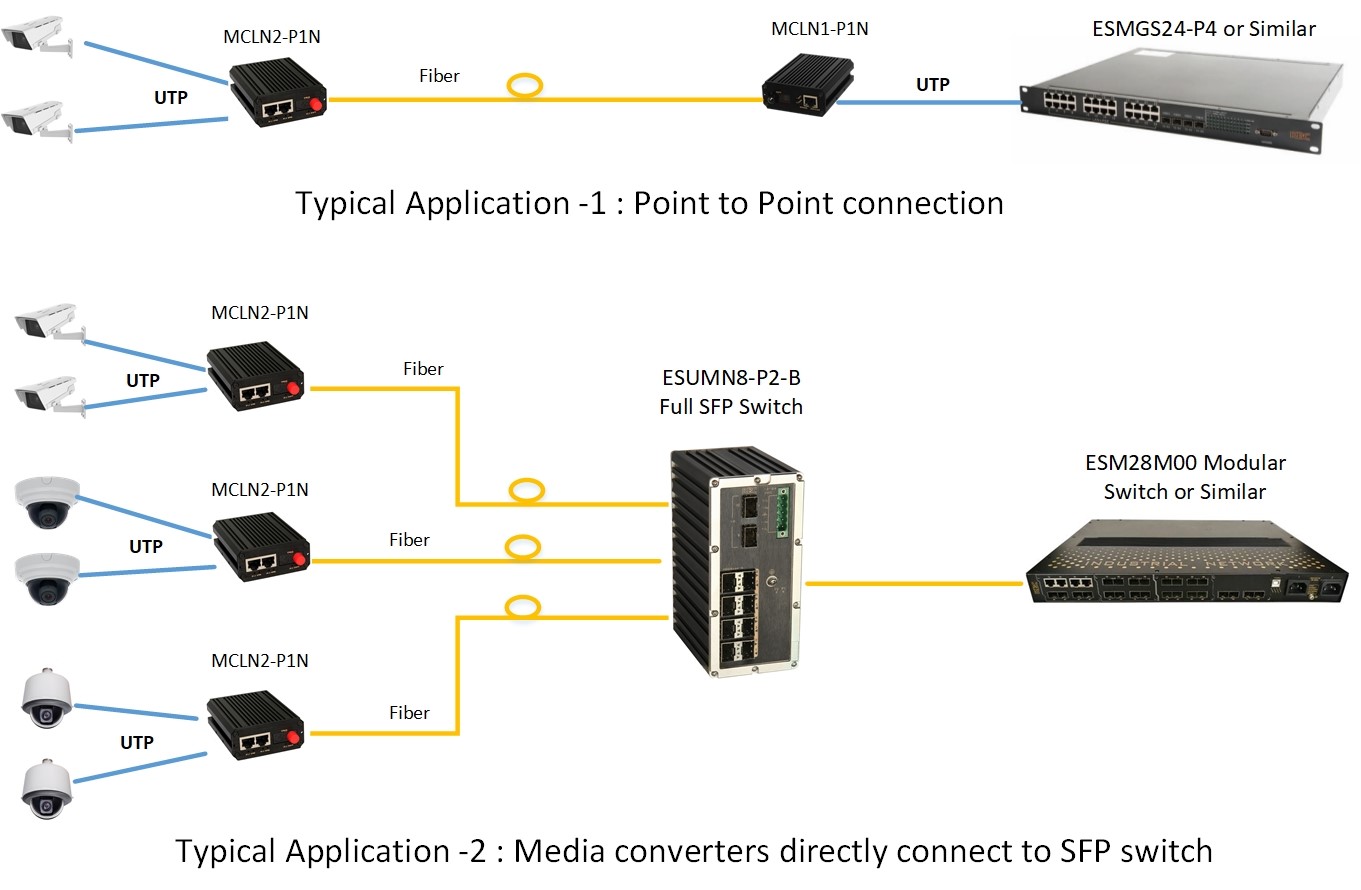

mcln2 p1n
