MCLN1-P1N
The KBC MCLN1-P1N series is an industrial 10/100M Ethernet media converter.

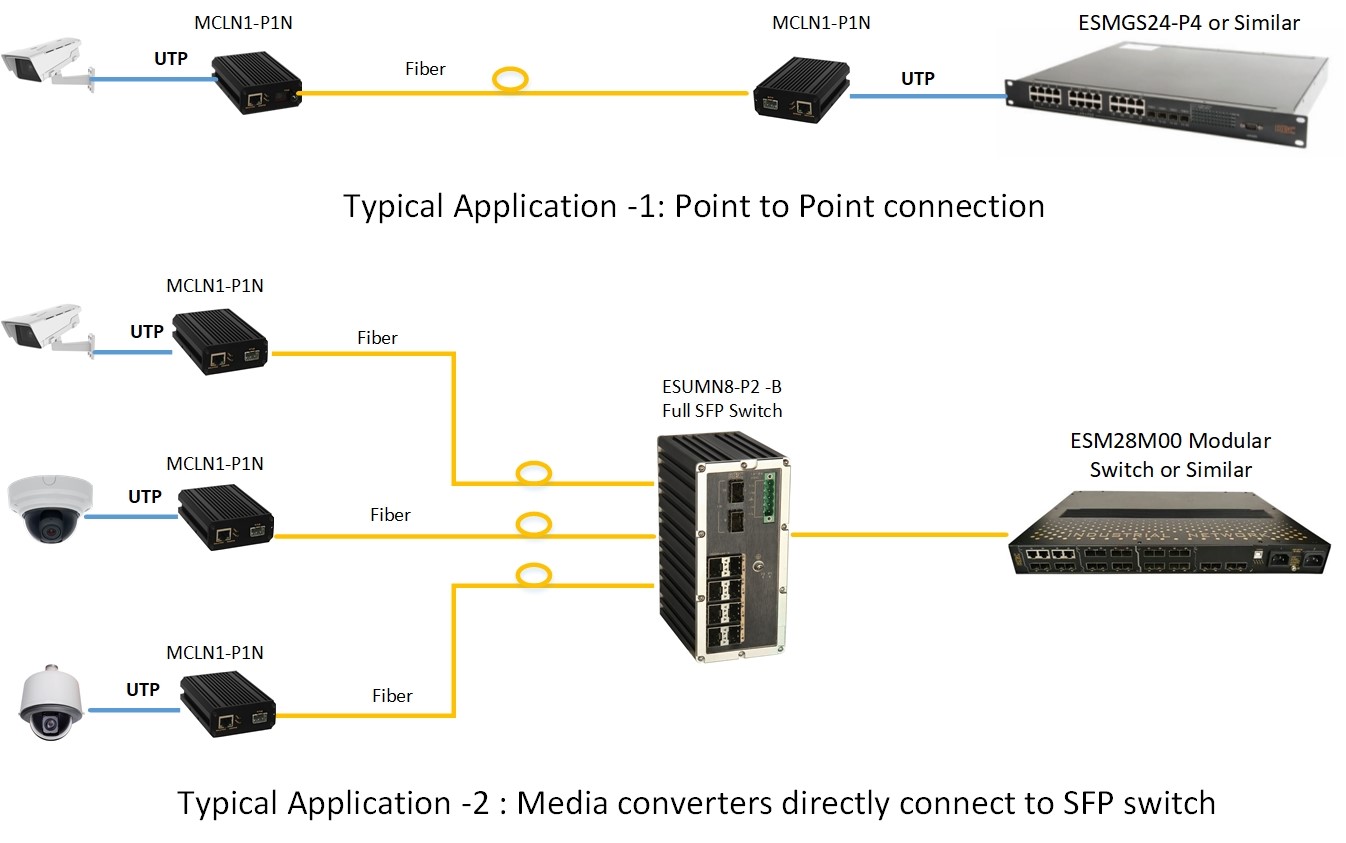

It supports transmission of one channel 10/100Base-T Ethernet over an SFP port. By selecting different KBC SFP modules, the media converter can be transmitted via one or two, multimode or singlemode optical fibers with full duplex operation.
There is no A end or B end for MCLN1-P1N series, both ends of MCLN1-P1N are the same. But when inserting 1 fiber version SFP module, two ends should be matched, that means one end is 1310nm/1550nm SFP, the other end is 1550nm/1310nm SFP. Plug-and-play design makes installation straightforward, with no electrical or optical adjustment needed.
LED indicators are provided to show the operational status of the unit. Rugged design in both enclosure and electrical protection makes it suitable for application in harsh environments.
The series is available in wall-mount, DIN rail, and 2U passive rack FR2-12, or card version in 2U chassis FR2-16.
Product Features
- 10/100M auto sensing
- 1*100Base-TX port
- 1*100Base-FX SFP port
- Compatible with MCLN1 series with 1*9 optics, and two channels 10/100M media converter MCLN2 series
- IP40 enclosure
- DIN rail, Wall-Mount or 2U Card version
- FR2-12 passive rack with 12 slots or chassis card in FR2-16 with 16 slots
