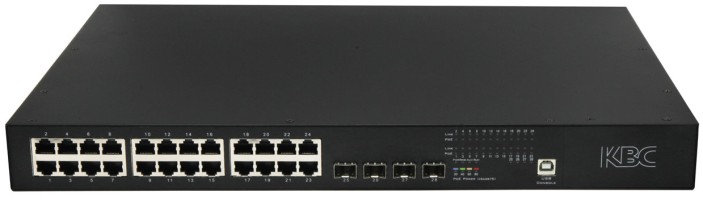

ESMGH24-N4-RXX-B Series

The KBC ESMGH24-N4-RXX-B series is a high-performance, managed Gigabit switch with 20 x 802.3at PoE+ Gigabit downlink ports, 4 x 802.3bt PoE++ Gigabit downlink ports, and 4 x 10G (user-selectable down to 1G) uplink SFP ports. It is designed for large-scale IP surveillance applications and networks. Each HPoE port (up to 90W) meets the high-power consumption requirement of a PoE IP camera within the overall budget. The PoE power budget is up to 750W. The switch is also ideal for applications requiring Power Sourcing Equipment (PSE) functionality, such as IP switches, routers and hubs, CCTV DVRs, home networking and industrial Ethernet. The automatic identification of the Powered Device (PD) ensures a reliable power supply to external devices. The switch supports a range of rich network functionalities, including ERPS, VLAN, RSTP, rate limiting, port security, SNMP and more.

The KBC ESMGH24-N4-RXX-B Ethernet switch is available as a 1U rack unit.

• Provides 20 PoE+ and 4 PoE++ Gigabit downlink copper ports and 4 10G uplink SFP ports
• Provides web-based layer 2 network management and PoE management by simple operation
• Supports IEEE802.3af&at&bt PoE
• Supports ITU-T G.8032 Ethernet ring protection, as well as STP, RSTP and MSTP
• Supports Command Line Interface (CLI) for fast configuration of major management functions
• Supports DHCP Option 82 for IP address assignment with different policies
• Supports IGMP snooping and MLD snooping for constraining multicast traffic
• Supports private VLAN and IEEE802.1Q VLAN
• Provides lock port function based on the MAC address for blocking unauthorized access
• Supports IEEE802.3ad LACP for optimum bandwidth utilization
• Supports QoS (IEEE802.1p/1Q and TOS/DiffServ) to increase determinism
• Supports TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
• Supports SNMPv1/v2c/v3 for different levels of network management
• Supports RMON for efficient network monitoring and proactive capability
• Supports port mirroring for online debugging
• Supports high-speed data forwarding, very suitable for a large flow of video data forwarding in security surveillance
• Quick Installation, simple operation, convenient for desk or rack installation
• Optional redundant power supply available
