The KBC ESUGS8-B is a high performance, unmanaged industrial gigabit Ethernet switch with 8* 10/100/1000M auto sensing copper ports. All 8 copper ports support PoE/PoE+ where each port can support a max 30W power.

The switch is rugged in design with an IP40 enclosure and industrial level 3 ESD protection.  Unique Din mount design makes mounting and removal simple.The rugged design makes this switch suitable for use in harsh environments such as power, transportation, pipeline, petrochemical, automation industries and IP surveillance.

  • 8* 10/100/1000BASE-T(X) ports
  • IEEE802.3af, IEEE802.3at&af
  • Redundant power supply input
  • Overload current protection and reverse polarity protection
  • Level 3 ESD protection
  • IP-40 housing
  • DIN-rail, desktop or wall mount
  • Unique DIN mount design making mount and remove simple

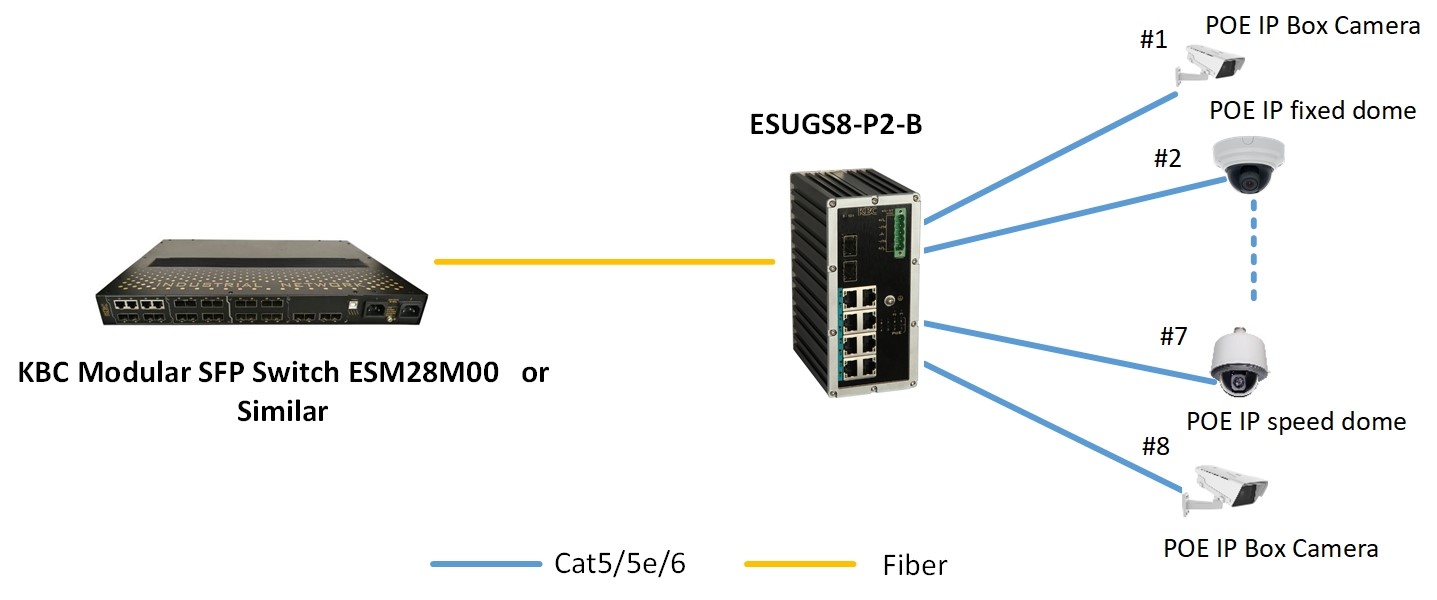

Typical System configuration for ESUGS8-P2-B
