ESMPN8-N2-B

The KBC ESMPN8-N2-B series is a high performance 10 port, industrial, managed full SFP switch. It has eight 1Gbps SFP ports and two 10Gbps SFP ports. The 8*1Gbps SFP ports can work with KBC media converter , unmanaged & managed industrial switches which are with SFP ports, and other similar switches in the market. The switch supports Ethernet Ring Protection Switching (ERPS) as well as STP/RSTP/MSTP , It also supports Web-based network management, VLAN, QoS, SNMP,IGMP snooping etc. network functions. 8* 10/100/1000Base-T Ethernet ports

  • 8 *1000Base-FX SFP, 2 10GBase-FX SFP+
  • EPRS (typical recovery time < 30ms over 250 units of connection)
  • STP / RSTP and MSTP redundancy protocols and standards
  • SNMPv1/v2c/v3 & RMON & Port base/802.1Q VLAN network management
  • WEB、Telnet、SSH、Console(CLI)
  • open and close port, binding MAC and port
  • 802.1x network access control
  • 802.1Q protocol, Isolate network flow
  • Radius Centralized password management
  • IGMP Snooping multicast function
  • IEEE802.3af/at standard.
  • Overload current protection and reverse polarity protection
  • Optional LED display shows transmitting and receiving power of optics
  • IP40 enclosure protection
  • Unique DIN mount design makes mount and removal easy

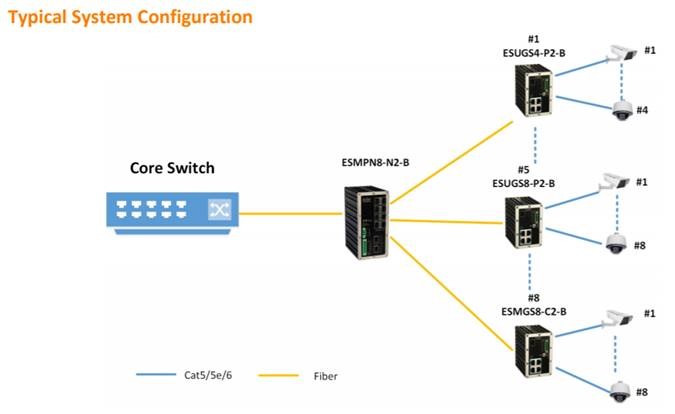

Typical System configuration for ESMPN8-N2-B
