YF437062

The YF437062 is an Industrial MIMO 4G/5G dual-polarized dipole antenna with up to 6dBi gain.

Electrical Specifications

• Frequency Range–MHz 680-960/1710-2700/3400-3800/3800-4300
• Input Impedance -Ω 50Ω
• VSWR ≤1.5
• Gain-dBi 2*6dBi
• Electrical Wave Omni
• F/B ratio-dB 15
• Horizontal Beam width -° 360°
• Vertical Beam width -° 30°
• Polarization Verti

Mechanical Specifications

• Antenna Cover Material PVC

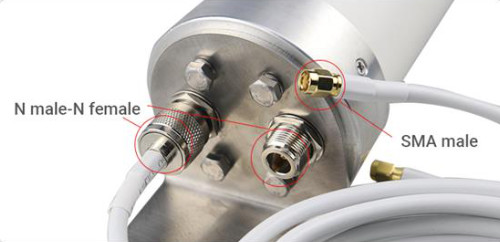

• Connector Type 2*N female
• Cable Type LMR240
• Cable Length 2*500CM
• Working Temperature -40℃~+65℃
• Size 80*370mm
• Antenna Weight 0.9kg
• Mounting 35~φ50mm
• Color White
• Rated Wind Velocity 210km/h
• Package weight 40*11*11cm/1pcs/1kg

Optional Accessories (purchased seperately)

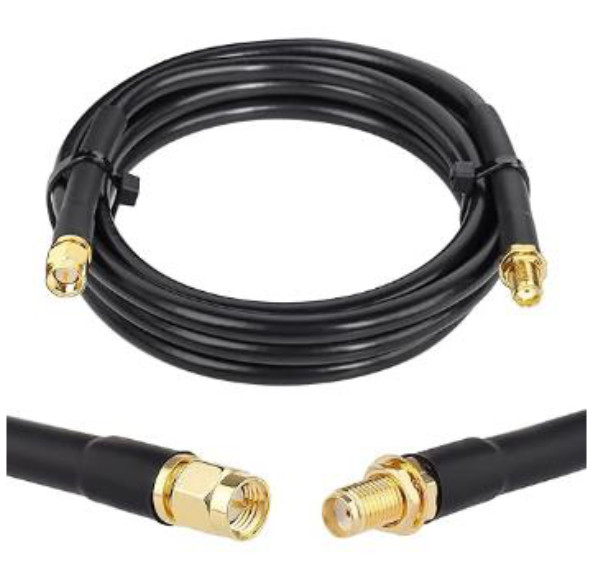

LMR240: SMA male to female 5-meter extension cable

• Impedance 50 Ohms
• Capacitance pF/ft (pF/m) 24.2 (79.4)
• Inductance uH/ft (uH/m) 0.060 (0.20)
• Shielding Effectiveness dB >90
