EECF16-GN3-R-RX-B

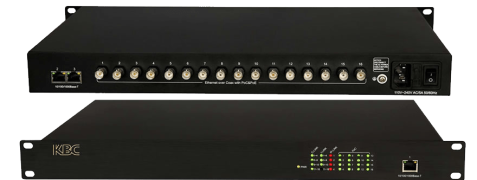

The EECF16-GN3-R-RX-B is an Ethernet over Coax (EoC) switch with 16 coax ports with Power Over Coax (PoC) and 3*10/100/1000M Ethernet ports.

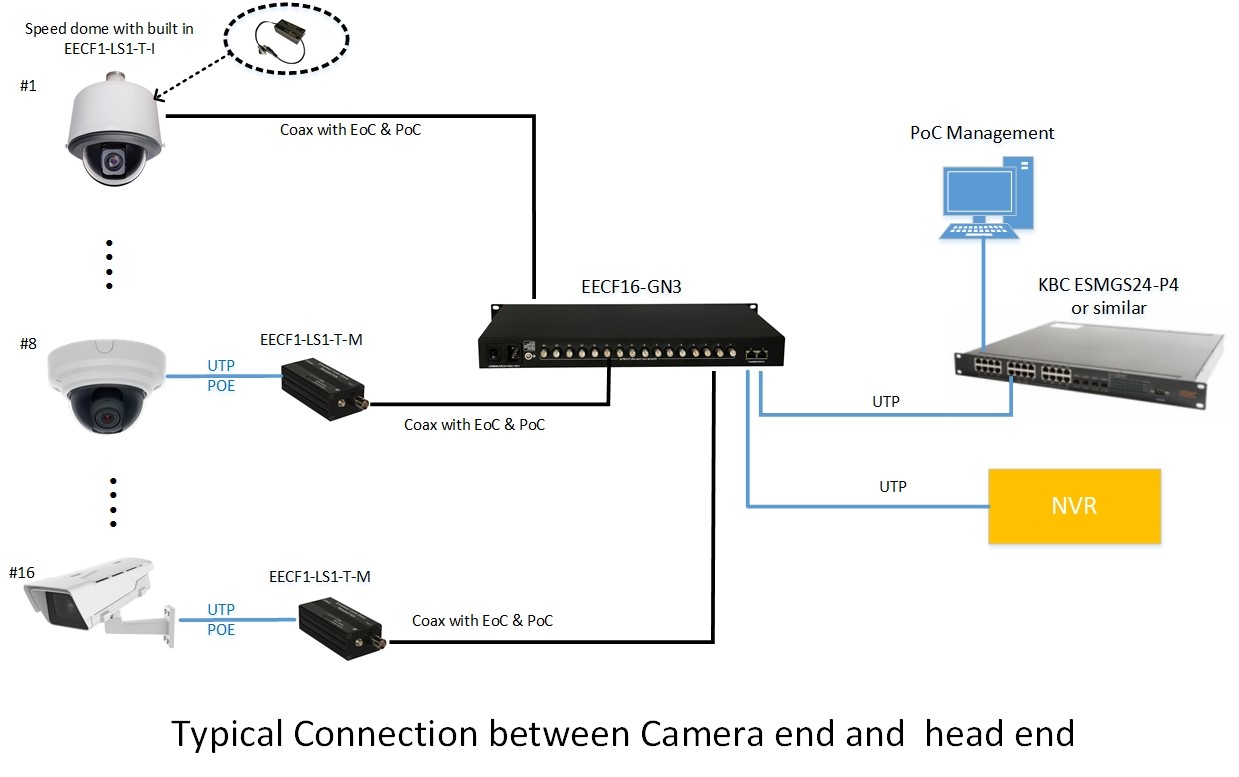

This eCopper switch provides connectivity up to 16 units PoC/PoE version EECF1-LS1-T-MN-B transmitter. Power is supplied to the transmitter through the coaxial cable. Varying data rates are supported depending on cable distance and quality.

This product also provides PoC management which allows the operator to remotely switch power on or off to any of the coax channels. Plug-and-play design ensures ease of installation with no electrical adjustment needed. LED indicators are provided to show the operational status of the unit clearly.

This switch is available in 1U rack configuration.

  • 16 coax ports with or without PoC
  • 3 *10/100/1000M Ethernet ports (1 at the front and 2 at the back)
  • PoC management
  • Full switching capability
  • Connect up to 16 units EECF1-LS1-T-IN-B, EECF1-LS1-T-MN-B or EECN1-LN1-T-MX-B or any combination
  • Coax data rate >50Mbps (300m)
  • PoE+ is supported up to 300m based on coax quality and applied voltage to coax (48~57VDC)
  • Overcurrent and short circuit protection
  • Unique PoC transmission protection design so that no power is output when transmitter end is not connected
